Case Study: Eliminating Premature Wear in High-Speed Motors with Welink 696ZZ Miniature Bearings

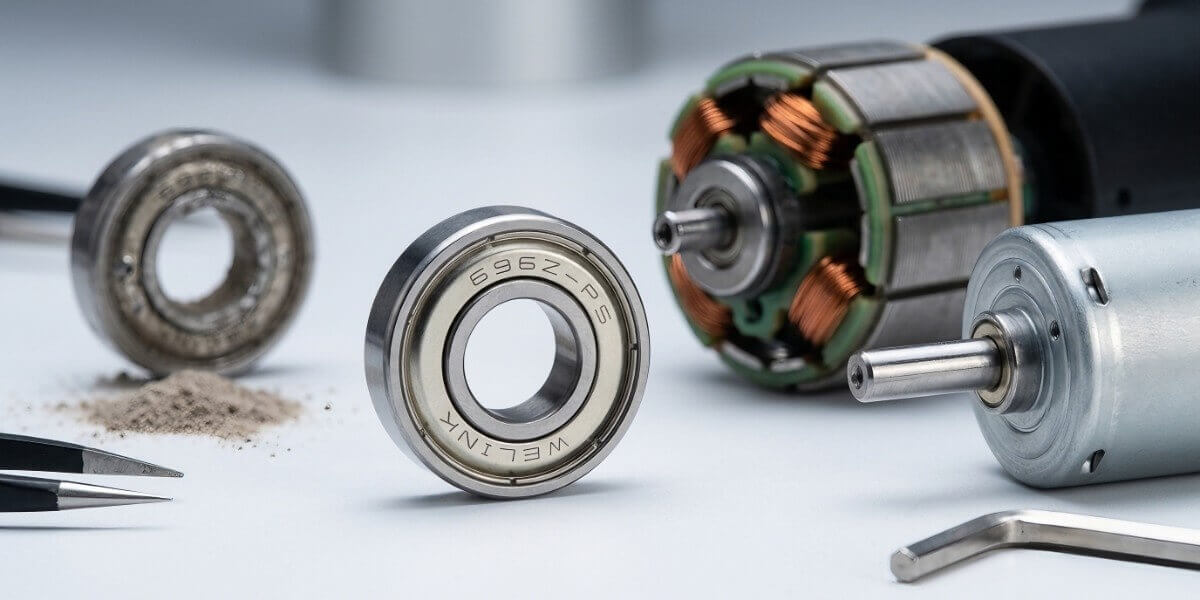

Welink 696ZZ miniature deep groove ball bearing alongside high-speed brushless DC motor components and workshop dust.

Client Background

A Latin American manufacturer specializing in high-speed massage guns and compact brushless DC motors partnered with Welink Bearing to resolve severe, recurring bearing failure issues that were bottlenecking their production.

Core Challenges

Before implementing our solution, the client faced three critical operational hurdles:

• Supply Chain Inefficiencies: Sourcing premium imported miniature bearings resulted in prohibitive lead times (40+ days) and high unit costs, while the suppliers refused to accommodate small batch orders.

• Premature Wear and Operational Failure: To cut costs, the client temporarily switched to generic, low-cost 696 bearings. Under continuous high-vibration operation at 12,000 RPM, these generic bearings deteriorated within 2 to 3 weeks. This caused abnormal noise, motor jamming, and frequent, costly production downtime.

• Environmental Contamination: The workshop environment generated fine dust, which easily penetrated the unqualified generic bearings due to inadequate shielding mechanisms.

The Welink Custom Solution

After analyzing their operating environment and speed requirements, Welink Bearing engineered a targeted solution using our standard 696ZZ Double Metal Shield Miniature Deep Groove Ball Bearing (6×15×5 mm):

• Material & Precision: Manufactured from premium GCr15 bearing steel with a stable P6 tolerance class, ensuring smooth, low-friction rotation at high speeds.

• Enhanced Protection: Equipped with double ZZ iron shields to effectively block fine workshop dust, and pre-filled with high-temperature grease to guarantee maintenance-free operation.

• Quality Assurance: Every batch undergoes strict vibration and noise inspection (Z-group/V-group standards) prior to delivery to maintain unwavering consistency.

• Agile Logistics: Leveraging our robust spot inventory, we fully supported their small Minimum Order Quantity (MOQ) requirements and achieved a fast 7-day shipment directly to Latin America.

Measurable Results

By upgrading to Welink's 696ZZ miniature bearings, the client transformed their manufacturing performance:

✅ Lifespan Multiplied: Bearing service life was drastically extended from 3 weeks to over 6 months under continuous, full-load running conditions.

✅ Quality Improved: The overall motor defective rate dropped by 78%.

✅ Cost Reduction: Spare part procurement costs were cut by 42% compared to their original imported premium brands.

✅ Optimized Lead Time: Delivery cycles were shortened from 40 days to just 1 week, effectively eliminating the risk of production delays.

Application Coverage

This high-performance miniature bearing solution is also highly suitable for:

▪ Massage gun motors

▪ 3D printer extruders

▪ Drone servos

▪ Small cooling fans

▪ Medical micro-equipment

▪ Miniature automation actuators

Upgrade Your High-Speed Applications Today

Are you experiencing similar lifespan or supply chain issues with your compact high-speed devices? Welink Bearing maintains a stable stock of the full 68/69 series miniature bearings (available in ZZ and 2RS open types).

Contact our engineering team today to request technical datasheets, free samples, and a competitive bulk quotation.
