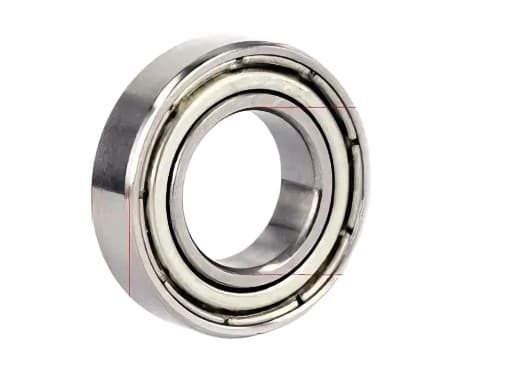

63800-ZZ Ultra-Thin Extended-Width Ball Bearing | 10×19×7 mm for Micro-Motors & Precision Automation

• High-precision rotary encoders and optical feedback sensors

• Miniature articulating joints and low-profile micro-actuators

• Automated laboratory fluidic diagnostics and sorting drives

• Small-scale automated guided vehicles (AGV) and drive wheels

• Outrunner rotors and stators in high-efficiency DC motors

• Precision dental handpieces and surgical power tools

• High-RPM cooling fans for enterprise servers and telecom racks

• Miniature aerospace gyroscopes and portable tech hardware

• High-performance FPV racing drone motor shafts

• RC helicopter main rotor grips and tail assemblies

• Multi-axis camera gimbal stabilization mechanisms

• Compact drivetrains and differentials for micro RC crawlers

• 3D printer stepper motors and high-torque extruder feeds

• LiDAR scanning modules and laser mirror assemblies

• High-speed industrial camera autofocus mechanisms

• Automated ticketing systems and micro-film processing gear

01. Extended Wide Thin-Wall Profile

Featuring an optimized 10×19×7 mm layout, this design provides a wider tracking footprint than standard 6800 bearings. This extra width delivers greater radial stiffness and handling capacity for light combined loads without increasing the overall housing diameter.

02. Frictionless Non-Contact Shielding

Dual pressed-steel shields (ZZ) provide robust protection against particulate ingress without inducing mechanical drag. This zero-contact method keeps operational temperatures low and prevents energy loss, maximizing battery runtimes in portable electronic devices.

03. Industrial-Grade Chrome Steel (GCr15)

Forged from ultra-clean, vacuum-degassed GCr15 high-carbon chrome steel, both the rings and balls undergo precise thermal treatments to ensure exceptional Rockwell hardness and wear resistance. Pre-packed with premium grease, these bearings offer silent, smooth operation right out of the box.

Interchange Part Numbers

Directly replaces the following equivalent manufacturer parts:

• NSK: 63800ZZ
• SKF: 63800-2Z
• KOYO: 63800ZZ
• NTN: 63800ZZ
• Nachi: 63800ZZ
• FAG: 63800-2Z

Design & Configuration

The standard 63800-ZZ is supplied pre-filled with high-speed, noise-dampening grease formulated for industrial environments. For specialized engineering requirements, Welink Bearing can supply this model with C3 internal clearance to safely manage thermal expansion, or in AISI 440C stainless steel for moisture-heavy applications. For environments exposed to direct liquid spray or heavy dust, please consult our team regarding our contact-sealed 63800-2RS rubber variants.

"The 63800-ZZ delivers an optimized balance of space-saving geometry and increased structural rigidity, driving next-generation innovations in micro-automation and high-speed motion control."
