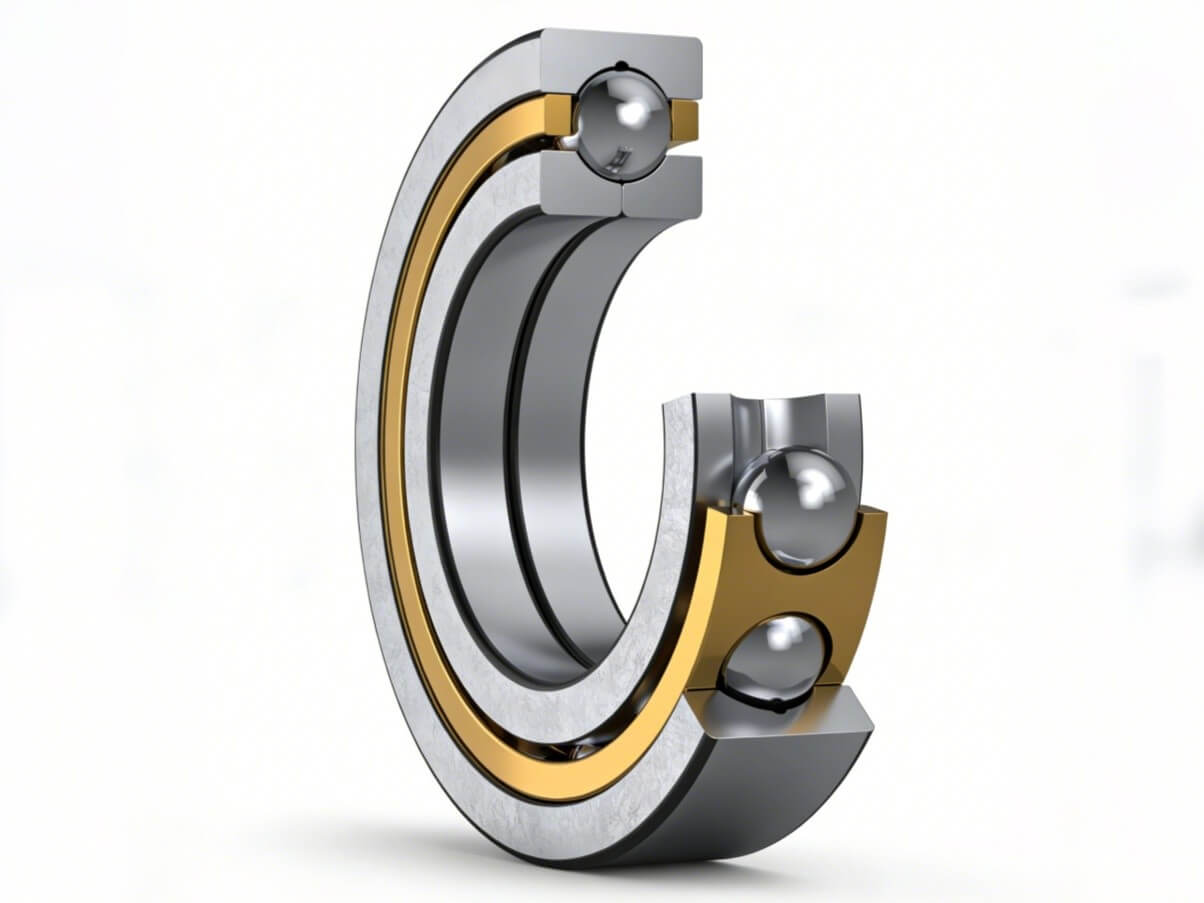

7001 Series Angular Contact Ball Bearing Single Row for Automotive Systems | 12mm Bore

• High-Frequency Spindle Drives
• PCB Drilling & Milling Spindles
• CNC Router & Engraver Spindles
• Optical & Measuring Instrument Rotors

• Servo & Stepper Motor Ends
• Precision Gearbox Input/Output
• Robotics Rotary Joints & Actuators
• Encoder & Sensor Support

• Turbocharger Core Support
• Clutch Release Bearings
• Automotive Water Pump Shafts
• Electric Vehicle Traction Motor Supports

• Dental & Lab Centrifuge Drives
• High-Speed Packaging Machinery
• Textile Spinning Machine Spindles
• Cleanroom & Semiconductor Handling Robots

01. Enhanced Axial Load-Carrying Capacity

With specific contact angle options (15° C, 25° AC, or 40° B), the 7001 Series offers significantly higher axial load capacity than standard deep groove bearings. This design provides increased shaft stiffness and positional accuracy, essential for precision machining and high-load applications.

02. Optimized for High-Speed Operation

Precision-ground components and balanced internal geometry enable stable performance at speeds up to 22,000 r/min (oil lubricated). Available in elevated P5 and P4 precision grades for applications demanding minimal vibration and exceptional running smoothness.

03. Flexible Integration & Protection

Supports single or paired mounting (DB, DF, DT arrangements) to meet varying load and stiffness requirements. Choice of open, shielded (ZZ), or sealed (2RS) configurations allows optimal adaptation to environmental conditions—from clean, high-speed spindles to contaminated industrial settings.

Interchange Part Numbers

Direct replacement for major brand equivalents:

• SKF: 7001 C, 7001 AC, 7001 B
• NSK: 7001C, 7001AC
• FAG: 7001 C, 7001 AC
• NTN: 7001C, 7001AC
• KOYO: 7001C, 7001AC

Design & Configuration

The standard 7001 bearing is supplied as an open type for custom lubrication regimes or easy inspection. The ZZ suffix adds non-contact steel shields for basic contamination protection with minimal friction increase. For fully sealed, maintenance-free applications, the 2RS version with contact rubber seals is recommended. The contact angle is key: choose 15° (C) for high-speed, 25° (AC) for balanced load/speed, or 40° (B) for maximum axial stiffness.

"In precision electric spindles and high-frequency routers, the 7001 AC paired in a back-to-back (DB) arrangement provides the axial rigidity and thermal stability required for micron-level accuracy.”
