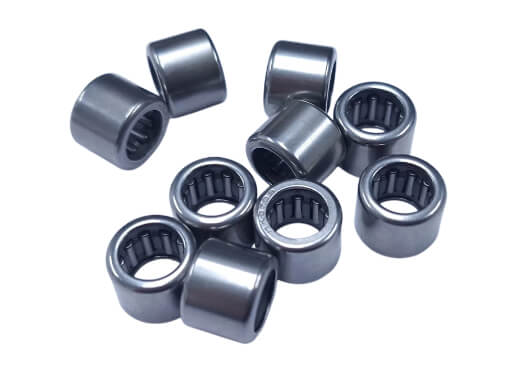

HK0709 Drawn Cup Needle Roller Bearing | Thin-Walled & High Radial Stiffness | 7×11×9mm

• Vehicle Transmission Support Shafts

• Alternator and Starter Motor End Plates

• Steering Column Pivot Points

• Brake System Actuators

• Two-Stroke Engine Crankshafts

• Lawn and Garden Equipment Drives

• Outboard Motor Gearboxes

• Compact Chain Saw Rotors

• Textile Machinery Feeding Rollers

• Portable Power Tool Internal Gearing

• Kitchen Appliance Motor Shafts

• Office Equipment Paper Feed Mechanisms

01. Cold-Formed Drawn Cup Technology

The outer ring is manufactured through a specialized deep-drawing process using high-grade sheet steel. This results in a thin-walled structure that offers high radial stiffness and load capacity without the weight or bulk of a machined bearing ring. It allows for the most efficient use of radial space in modern machine design.

02. Enhanced Needle Roller Guidance

The HK0709 features a robust cage that accurately guides the high-carbon chrome steel rollers. This design minimizes internal friction and allows for high-speed operation while ensuring that the lubricant is evenly distributed across the contact surfaces, preventing localized overheating and wear.

03. Seamless Press-Fit Integration

Because the outer ring is thin and flexible, it assumes the roundness and precision of the housing bore once pressed into place. This simplifies the manufacturing process and ensures a secure, interference-fit that maintains its position even under significant vibration or high-speed cycles.

Interchange Part Numbers

Direct cross-references for global procurement and technical compatibility:

• SKF: HK 0709
• NMB: HK0709
• NSK: HK0709
• NTN: HK0709
• FAG: HK 0709
• KOYO: HK0709

Design & Configuration

At Welink Bearing, we leverage 15 years of B2B expertise to provide precision needle roller solutions that withstand the rigors of heavy-duty industrial use. The HK0709 is a testament to our commitment to high-precision, space-saving technology. For our OEM partners, we offer custom production runs featuring specialized heat treatments for the outer ring, specific cage materials for chemical resistance, and unique internal clearance settings to ensure the bearing performs perfectly within your specific housing tolerances.

"Unlock maximum radial performance in the smallest envelopes with the HK0709 drawn cup needle bearing—precision you can trust."
