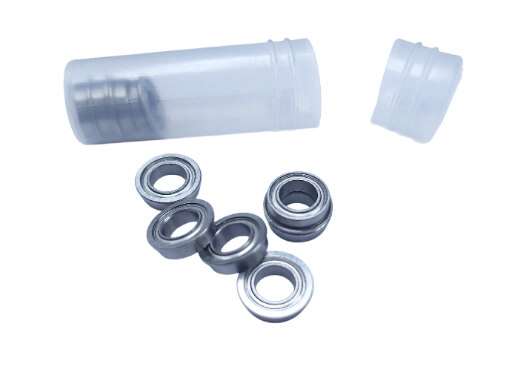

MF106-ZZ Dual Shielded Flanged Miniature Ball Bearing | High Precision | 6×10×3mm

• Filament Extruder Assemblies

• Linear Guide Idler Supports

• Compact CNC Spindle Enclosures

• Laser Cutting Carriage Wheels

• Compact Robotic Joint Actuators

• Precision Stepper and Servo Motors

• Automated Guided Vehicle (AGV) Internal Sensors

• Drone Gimbal Mounts

• High-End Massage Chair Mechanisms

• Smart Appliance Internal Motors

• Robotic Vacuum Wheel Hubs

• Precision HVAC Micro-Fans

01. ZZ Dual Metal Shields for Contaminant Defense

Equipped with two non-removable pressed steel shields, this bearing is strictly protected against the ingress of dirt and moisture. This shielded configuration allows it to be pre-lubricated with high-performance lithium-based grease for the entirety of its life, eliminating the need for complex relubrication intervals in hard-to-reach assemblies.

02. Integrated Flange Design

The defining feature of the MF series, the flanged outer ring allows for exact location within a housing without requiring a machined thrust shoulder. This prevents the bearing from axially displacing under load and significantly streamlines the manufacturing and assembly process of the surrounding components.

03. Industrial-Grade GCr15 Chrome Steel

Manufactured from premium high-carbon chromium bearing steel (SAE 52100 equivalent), both the inner/outer rings and rolling elements provide exceptional wear resistance and load-bearing capacity. Strict heat treatment protocols ensure the bearing maintains P5-level precision and dimensional stability even under continuous, high-frequency rotation.

Interchange Part Numbers

Cross-reference equivalent manufacturer part numbers for seamless procurement and BOM integration:

• SKF: MF 106-2Z
• NMB: LF-1060ZZ
• NSK: MF106ZZ
• NTN: FLW676ZZ
• FAG: MF 106-2Z
• KOYO: WMF676ZZ

Design & Configuration

Leveraging over 15 years of integrated manufacturing and global trade expertise, Welink Bearing is committed to supplying high-precision, flanged rotational components that drive industrial innovation. The MF106-ZZ highlights our capability to deliver reliable, high-speed solutions for compact mechanical systems. We actively support OEM clients and global distributors with tailored manufacturing options. This includes customized grease fill rates, specialized anti-corrosion treatments, and targeted internal clearances (such as C3 or vibration-sensitive CM grades) to ensure optimal performance within your specific operational environments.

"Streamline your micro-assemblies and secure precise alignment with the MF106-ZZ flanged bearing—engineered for endurance."
