Decoding the "Heartbeat" of ZXMOTO: How Deep Groove Ball Bearings Support the Wild Performance of 500RR and 820RR?

Recently, the hottest topic in the motorcycle circle is undoubtedly "Zhang Xue Motorcycles". From the sweeping success of the 500RR to the 820RR being hailed as the "SU7 Ultra of the motorcycle world", and then to the thrilling championship win in the WSBK race, ZXMOTO has carved out a niche in the domestic large-displacement motorcycle market with its solid sales and performance.

Everyone is discussing the 818.8cc three-cylinder engine that can generate 135 horsepower, the 0-100 km/h acceleration in 2.81 seconds, or the highly competitive price. But as a professional bearing expert, when we see those performance motorcycles roll off the production line, we pay more attention to the key basic components hidden inside the engine, at the center of the wheel hub, and deep within the transmission - deep groove ball bearings.

Without these high-precision "industrial joints", even the most powerful engine cannot be transformed into a smooth driving experience. Today, taking advantage of the popularity of ZXMOTO, let's seek the deep groove ball bearing models that have supported the rise of domestic motorcycles.

Why are deep groove ball bearings the "lifeline" of Motorcycles?

Deep groove ball bearings are widely used in motorcycles, which are high-speed, high-load machines with limited space. They not only have to withstand the centrifugal force caused by high-speed rotation but also deal with radial loads (the weight of the vehicle and road impacts) and axial loads (thrust when cornering) simultaneously.

The reason why ZXMOTO can be equipped with an engine with an ultra-high rotational speed of 16,000 rpm and dare to compete in top-level races like WSBK is largely attributed to its internal bearing system.

A substandard bearing may burn out instantly at high rotational speeds of over 10,000 rpm, causing the engine to seize up; while a high-quality deep groove ball bearing gives the rider the confidence to twist the throttle.

Analysis of Common Deep Groove Ball Bearing Models Used in the Core Parts of Motorcycles

Based on our experience and industry standards, high-performance models like ZXMOTO's 500RR (dual-cylinder/four-cylinder) and 820RR (triple-cylinder) have specific selection requirements for deep groove ball bearings in different parts.

1. Transmission and Output Shaft: The "Steel Backbone" Under High Load

For the 820RR with a maximum horsepower of up to 135 horsepower or even higher, the transmission gears are subjected to tremendous impact forces. Here, deep groove ball bearings of the 63 series or 62 series are typically selected.

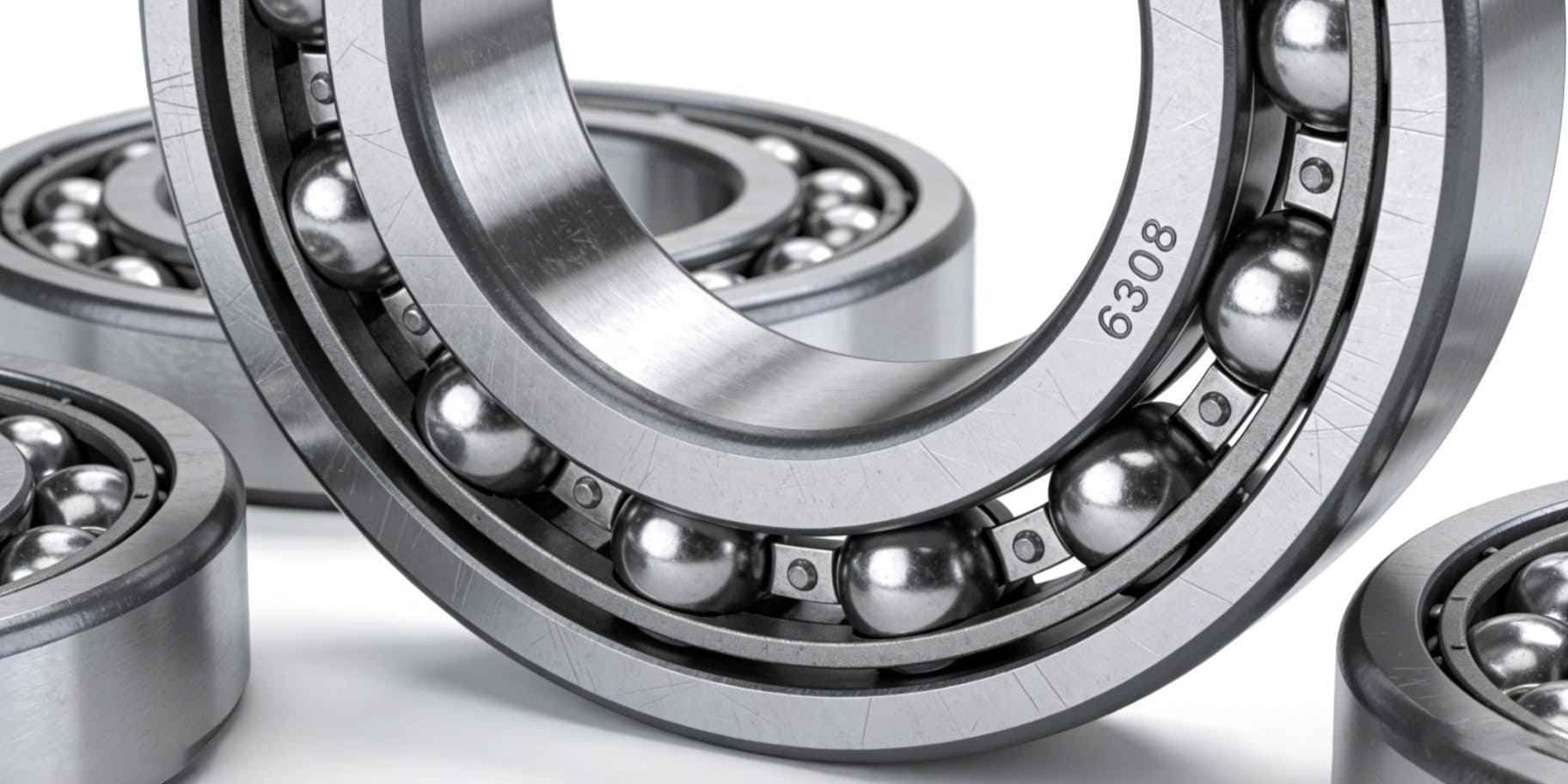

• Model Recommendation: 6308

• Main Parameters: Inner diameter 40mm, outer diameter 90mm, width 23mm.

• Application Analysis:

The 6308 bearing is a "time-honored" choice for the output end of motorcycle transmissions. It has a high radial load-carrying capacity and can withstand the huge pressure generated by gear meshing during high-horsepower output. The ZXMOTO 820RR has a peak torque of 85 N·m, and the 6308 bearing inside the transmission must have extremely high fatigue resistance to ensure the durability of the transmission system.

2. Wheel Hub: The Guardian of Safety and Smoothness

Whether it's the entry-level 500RR or the flagship 820RR, the smoothness of the wheel hub bearings directly affects the vehicle's handling and fuel consumption. Motorcycles often use double-row deep groove ball bearings or paired single-row bearings for their wheel hubs.

• Model Recommendation: 6304-2RS / 6204-2RS

• Sealing Form: 2RS (Double-sided contact rubber seal) is crucial.

• Application Analysis:

The riding environment for motorcycles is complex, with mud, sand, and rain inevitable. Bearings with the "2RS" suffix are equipped with rubber seals on both sides, effectively preventing external contaminants from entering the interior and preventing the loss of lubricating grease. This sealing design is key to ensuring the long life of the wheel hub bearings, whether for daily commuting or track racing.

The "Quality Thinking" Behind the ZXMOTO Phenomenon

ZXMOTO has gained huge attention in a short period of time. Even some netizens have compared it to Haojue's "zero failure rate". This indicates that while pursuing high performance and low prices, quality control is always the lifeline for a brand to last long.

For motorcycles, the quality control of deep groove ball bearings often determines the reliability of the entire vehicle. The premature failure of a single bearing may cause a motorcycle trip to break down halfway after several thousand kilometers, or even lead to safety accidents.

Therefore, whether you are looking for replacement parts for your Zhangxue motorcycle or seeking a supplier for your procurement needs, please pay attention to the following points:

1. Brand and source: Choose brands from reliable channels to ensure genuine materials and proper heat treatment processes.

2. Radial clearance: For the high-speed operation of the motorcycle, select the appropriate clearance group (such as C3 group) to accommodate thermal expansion during high-speed rotation.

3. Sealing and lubrication: For exposed parts (such as wheel hubs), be sure to choose models with sealing rings (2RS) and confirm the high-temperature performance of the pre-filled grease.

Conclusion

The sudden popularity of ZXMOTO has proven that Chinese motorcycles are no longer synonymous with low cost. We can also produce performance beasts with international competitiveness. Behind these impressive figures, there are numerous "hidden champions" like deep groove ball bearings, quietly providing support.

If you are looking for high-quality deep groove ball bearings for your Zhangxue motorcycle, or if you are also a domestic large-displacement motorcycle parts supplier, please feel free to contact us.

We have a full range of deep groove ball bearings in stock with inner diameters ranging from 2 to 60 mm, and offer professional selection advice for high-speed and heavy-load scenarios. Let's, like ZXMOTO, use solid components to help Chinese manufacturing run faster and farther.
