Deep Groove Ball Bearing Clearances: Why C3 is Not Always Better than CN?

When sourcing bearings like the popular 6312 series, one of the most common technical questions we receive at Welink Bearing is: "Should I choose CN (Normal) or C3 clearance?"

There is a common misconception among buyers that "C3" implies a higher precision grade or a "better" bearing. In reality, clearance has nothing to do with manufacturing quality; it’s all about fitting the bearing to its specific working environment. Choosing the wrong clearance can lead to premature failure, excessive noise, and unnecessary downtime.

What is Bearing Internal Clearance?

In simple terms, Bearing Internal Clearance is the total distance that one bearing ring can be moved relative to the other, either radially (Radial Clearance) or axially (Axial Clearance).

Before a bearing is installed, it has a certain amount of "play." This space is essential because as the bearing starts to run, the metal components expand due to heat. If there were zero clearance, the bearing would seize immediately once it reached operating temperature.

C3 vs. CN: What’s the Real Difference?

• CN (Normal Clearance): This is the standard for most general applications. It is designed to provide optimal performance when the shaft fits and housing fits are standard, and the temperature remains moderate.

• C3 Clearance: This is "greater than normal" clearance. It provides more room for the internal components to move.

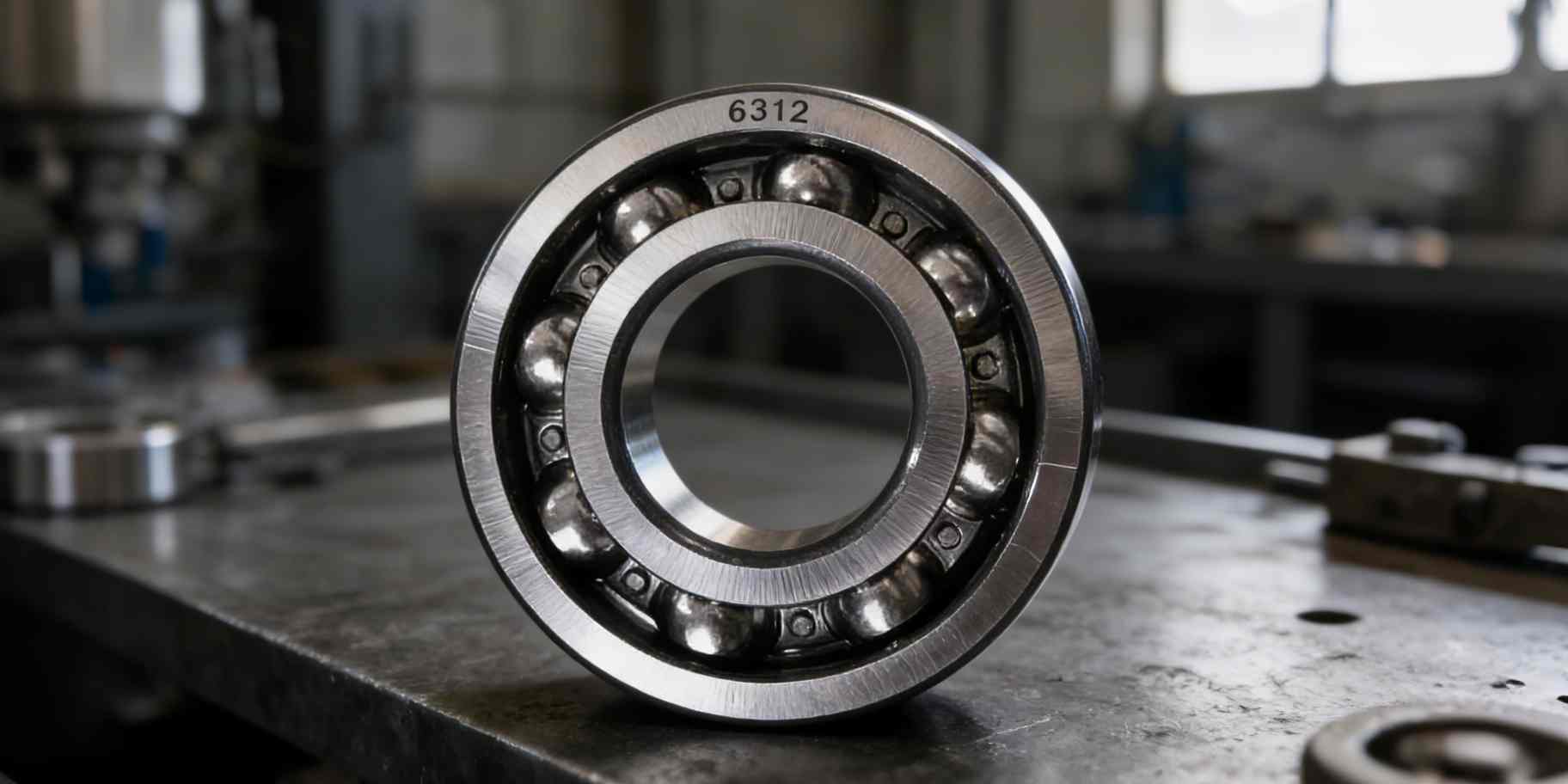

Why 6312 C3 is a Go-To Specification for Heavy Industry

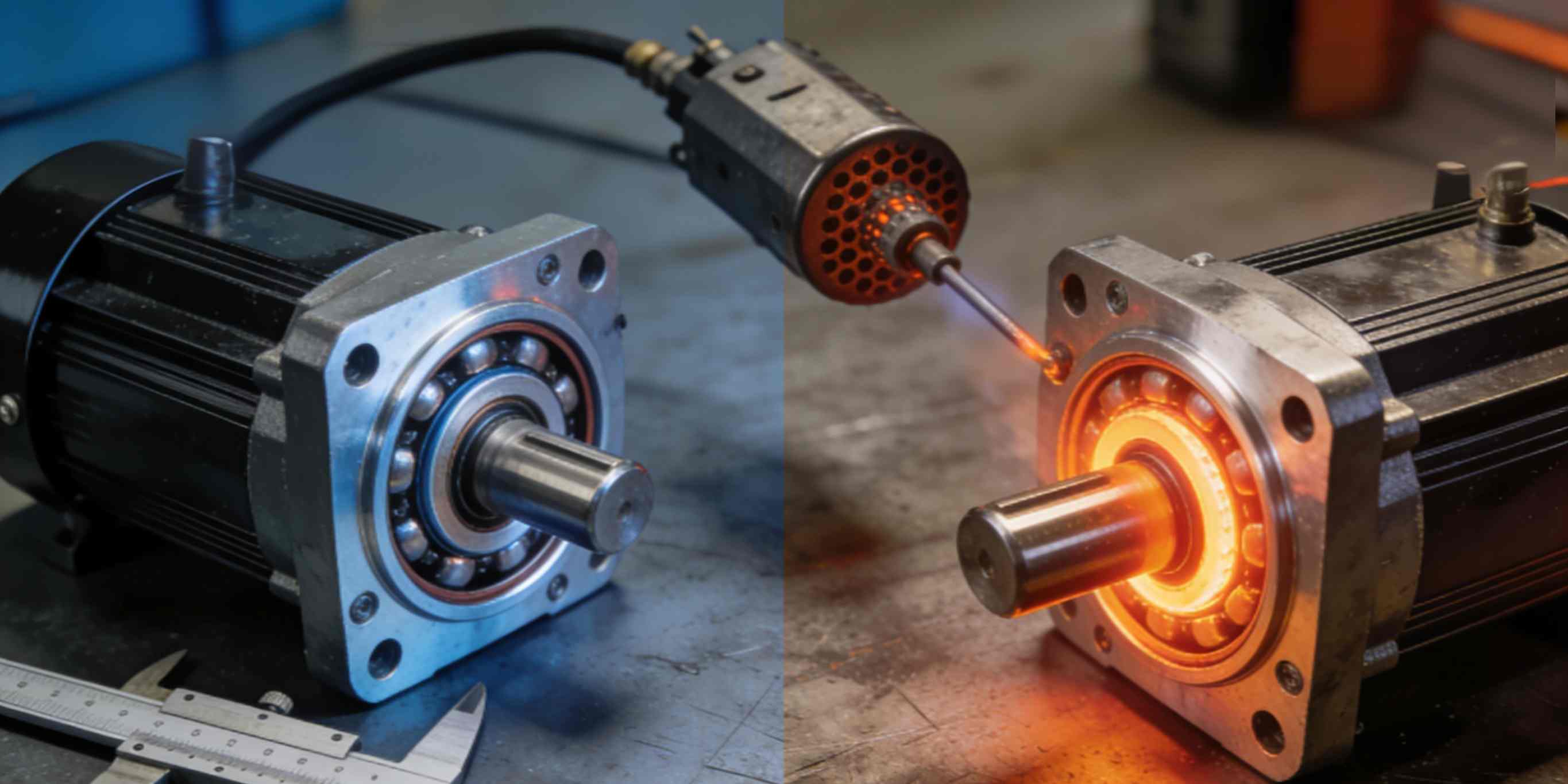

The 6312 C3 bearing is widely used in electric motors and industrial machinery. In these applications, the inner ring often becomes significantly hotter than the outer ring, causing it to expand. The extra space in a C3 bearing "absorbs" this expansion, ensuring the balls continue to roll smoothly without being crushed between the raceways.

When Should You Specifically Choose C3?

As a manufacturer, we generally recommend C3 clearance in the following scenarios:

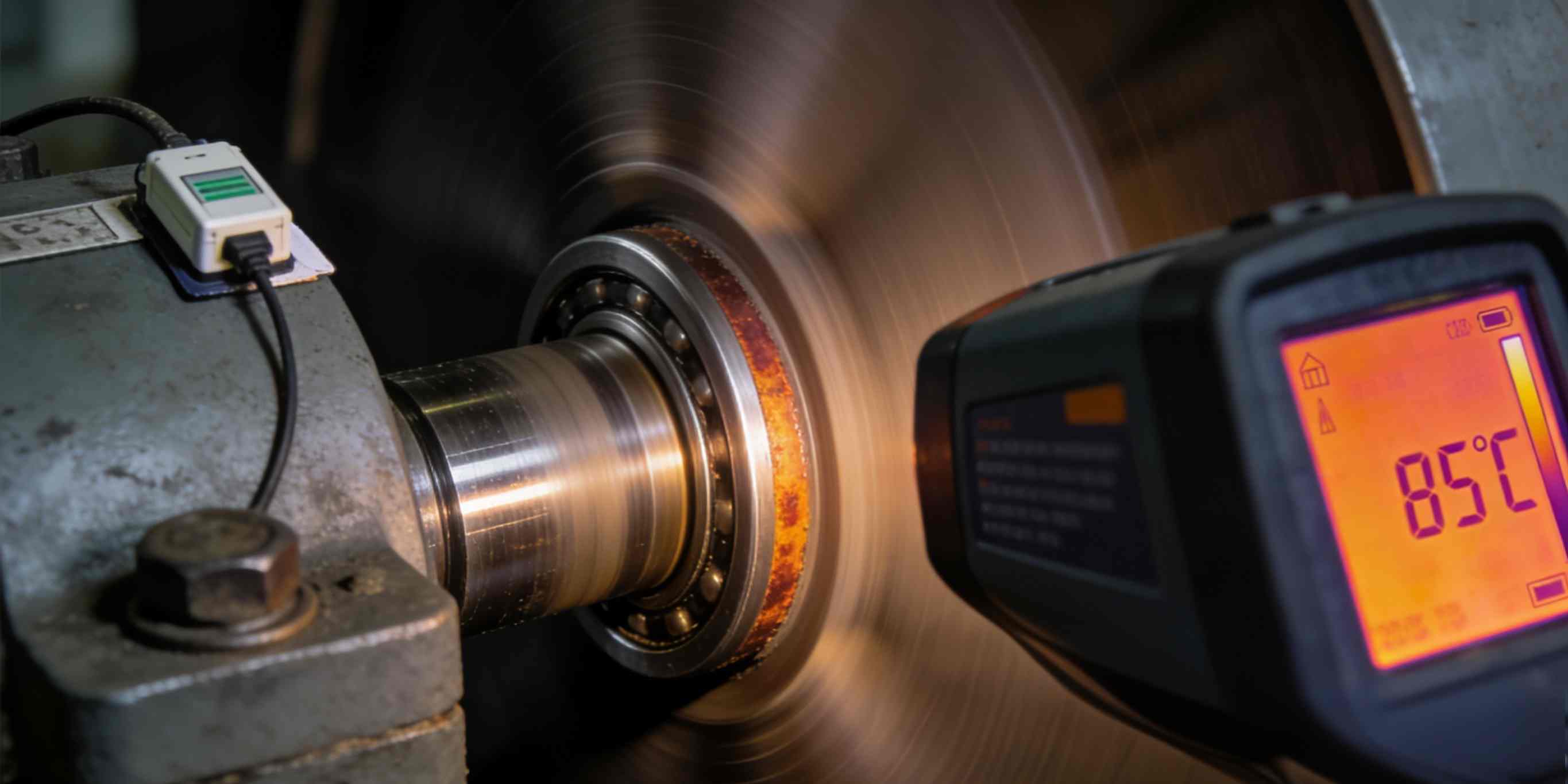

➊ High-Temperature Environments: If your equipment operates in environments exceeding 70°C (158°F), the thermal expansion of the steel makes C3 a necessity.

➋ High-Speed Rotation: High speeds generate centrifugal force and friction heat. A C3 clearance prevents the bearing from overheating and seizing.

➌ Heavy Interference Fits: If the bearing is being pressed very tightly onto a shaft, the inner ring will expand slightly during installation. C3 compensates for this initial "squeeze."

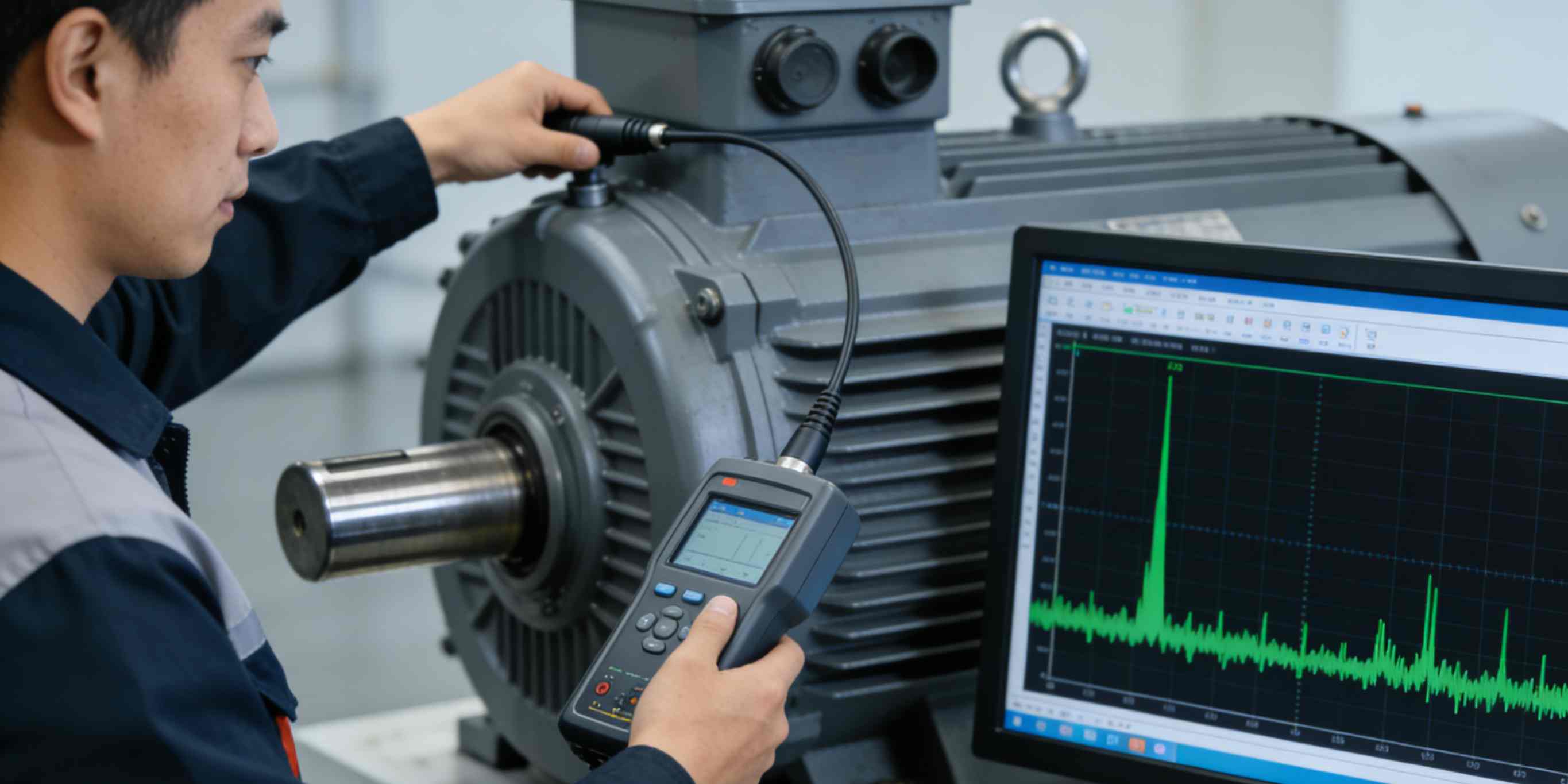

The Downside of Miscalculating: Noise and Vibration

While C3 is vital for high-heat tasks, using it in a standard, low-temperature application is a mistake.

If you use a 6312 C3 where a 6312 CN is required, the "extra play" will cause the balls to slide instead of roll. This leads to:

• Increased Vibration: The lack of internal stability causes the shaft to wobble slightly.

• Excessive Noise: This "looseness" creates a distinct rattling sound during operation.

If you are experiencing unexpected sounds from your assembly, you might want to revisit our previous guide on How to Reduce Bearing Noise in Electric Motor Assembly.

Summary: Making the Right Choice for Your Application

Choosing between CN and C3 is not about quality, it’s about application logic.

• Select CN for general-purpose gearboxes, fans, and standard electric motors where temperature and fit are controlled.

• Select C3 for heavy-duty industrial motors, high-speed spindles, or equipment operating in high-heat zones.

At Welink Bearing, we specialize in manufacturing high-precision Deep Groove Ball Bearings tailored to your specific technical requirements. Whether you need the tight tolerances of a 6201 for a water pump or the robust C3 clearance of a 6312 for heavy machinery, our team is here to ensure you get the right fit.

Still unsure which clearance your project requires? Contact our engineering team today for a technical consultation.
